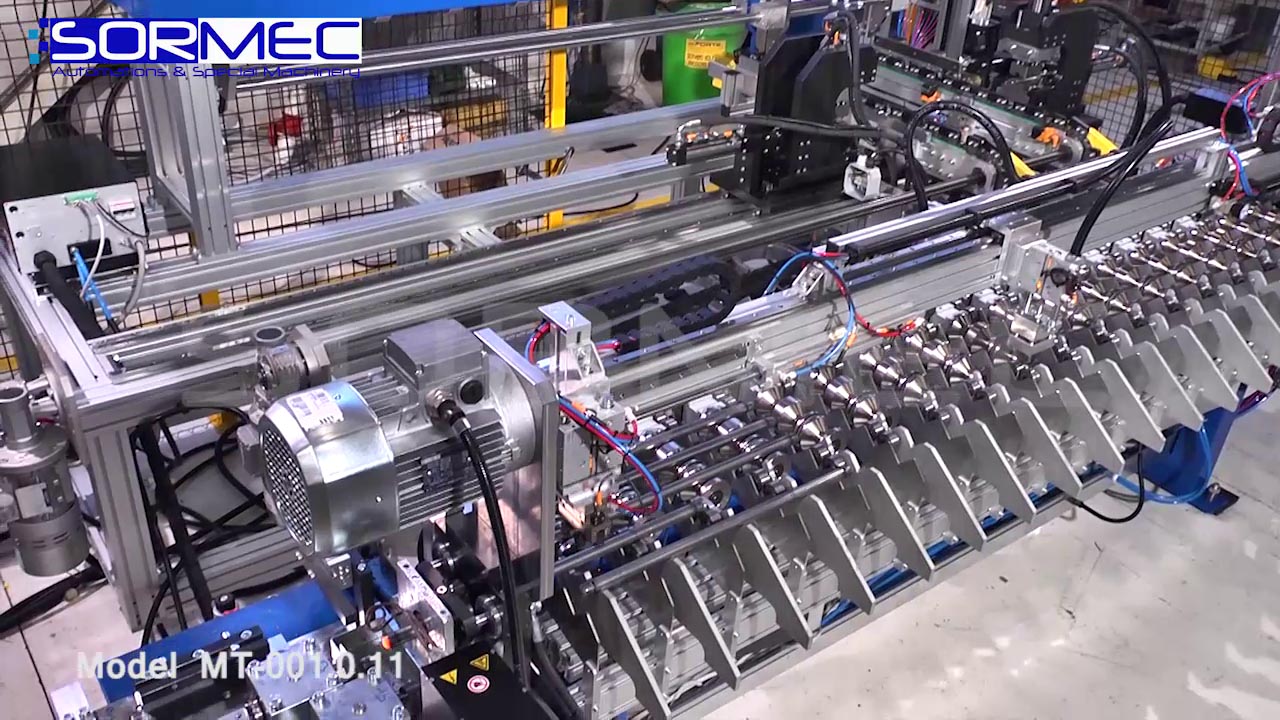

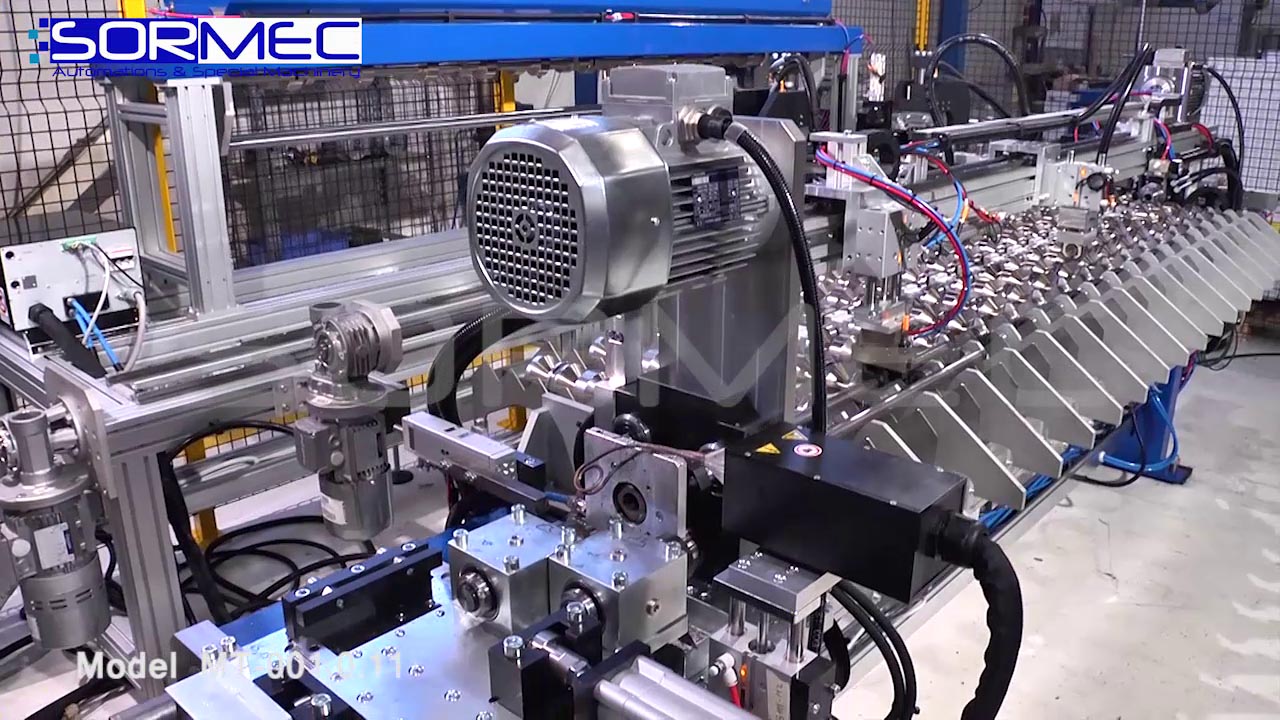

Automatic pipe end drilling & closing machine for radiating pipes of towel radiators

MT 001.0.11

TECHNICAL FEATURES

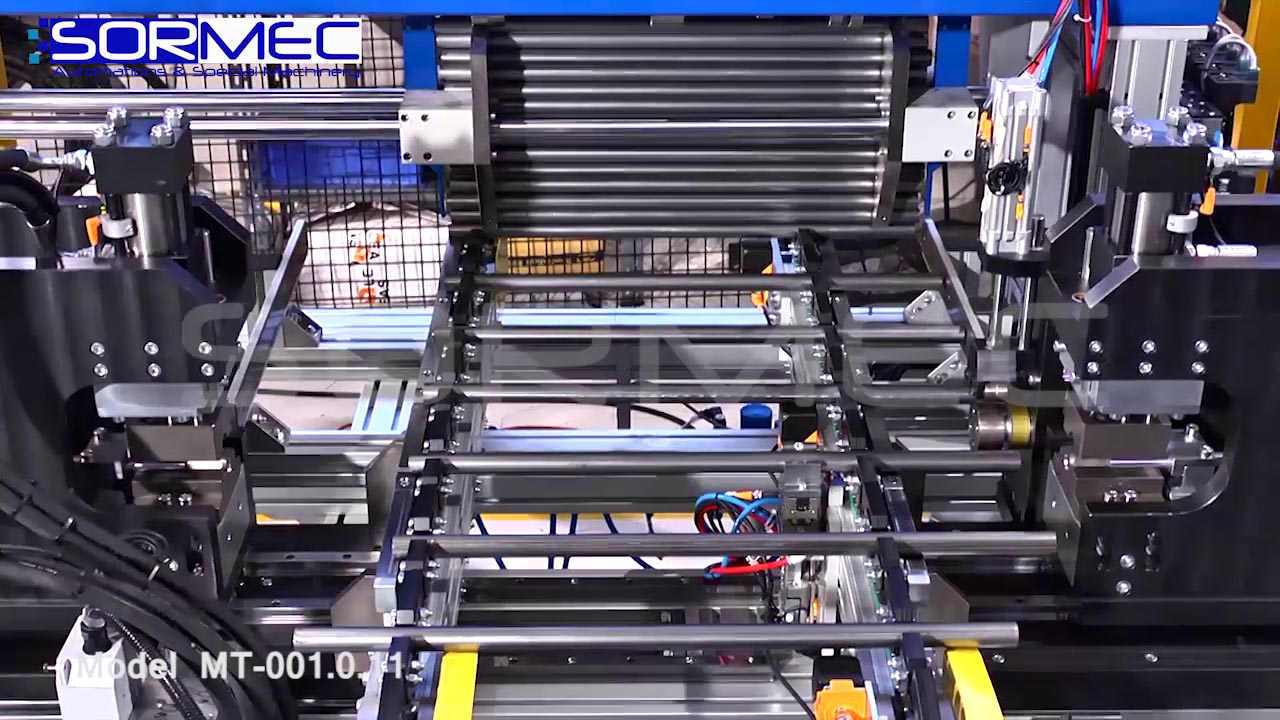

Pipes are put into a holding hopper with a capacity of approx. 100 - 120 pcs.
No. of tubes processed per cycle 1
The average production capacity required is approx. 250 pcs/hour
Tube diameter tolerances range between 22- 16
Pipe thickness 1.2 – 1
Min. pipe length (Lo) 400 mm
Max. pipe length (Lo) 2,400mm
