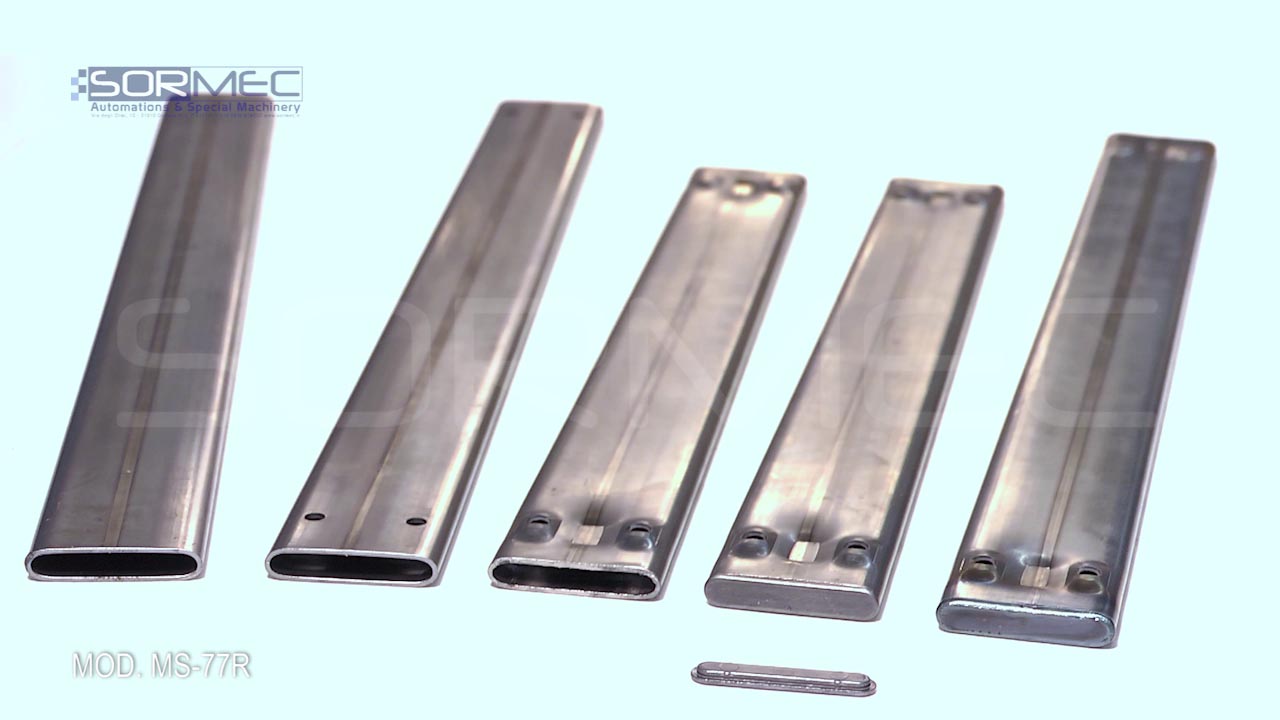

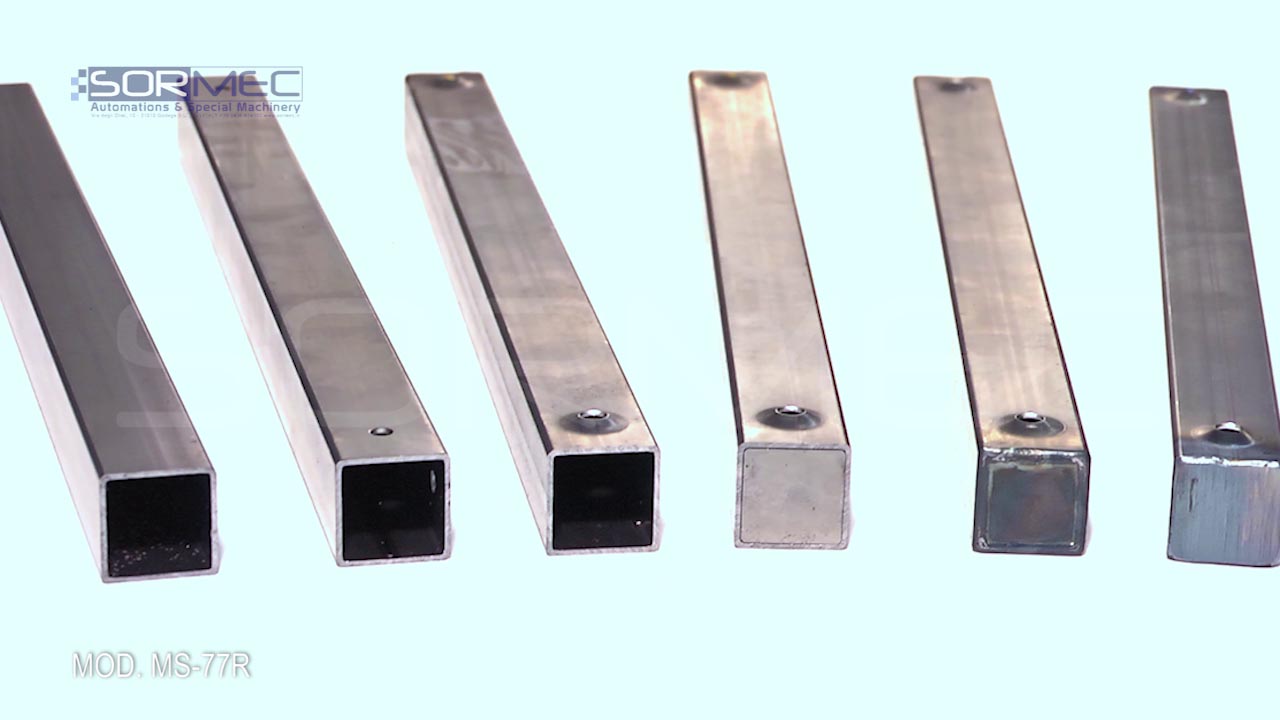

Robotic Cell -Flexible. For inserting and tig-plasma-welding of flanges for end closing for manifolds tube

MS 77 R

TECHNICAL INFORMATIONS

Flexibility to manage different welding profiles and different manifold shapes

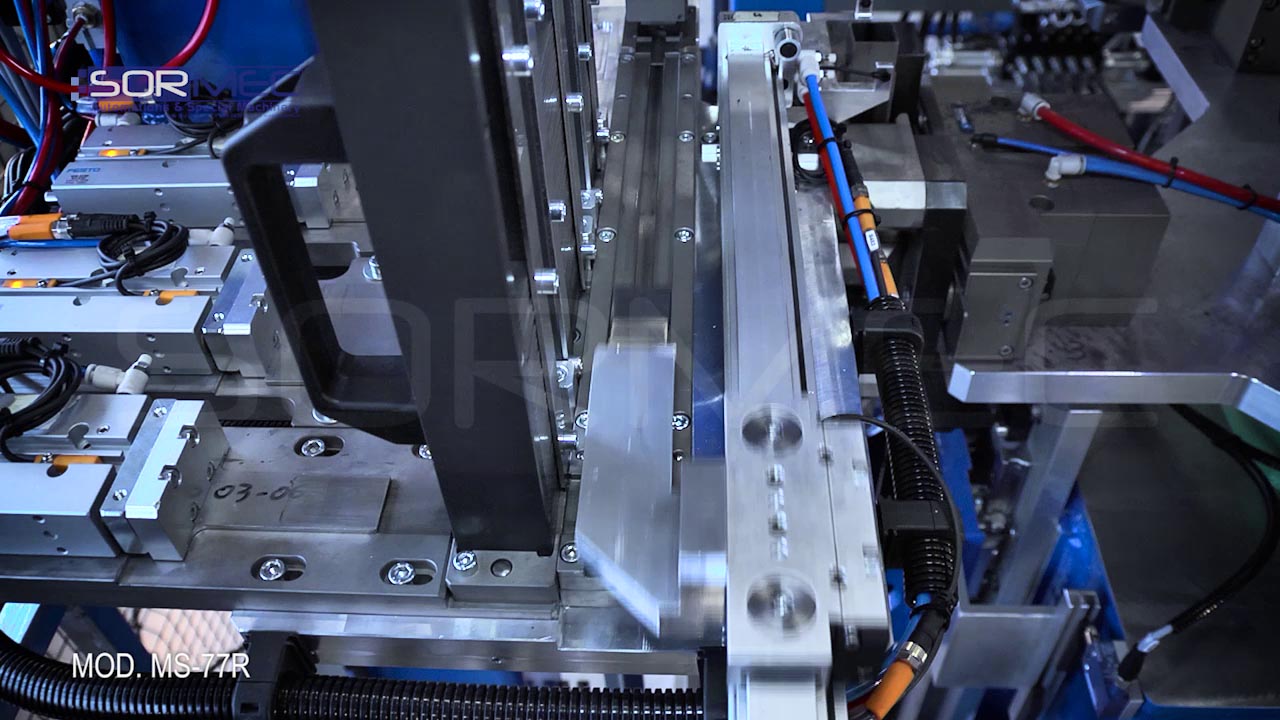

Feed system with automatic orientation of the manifold pipes

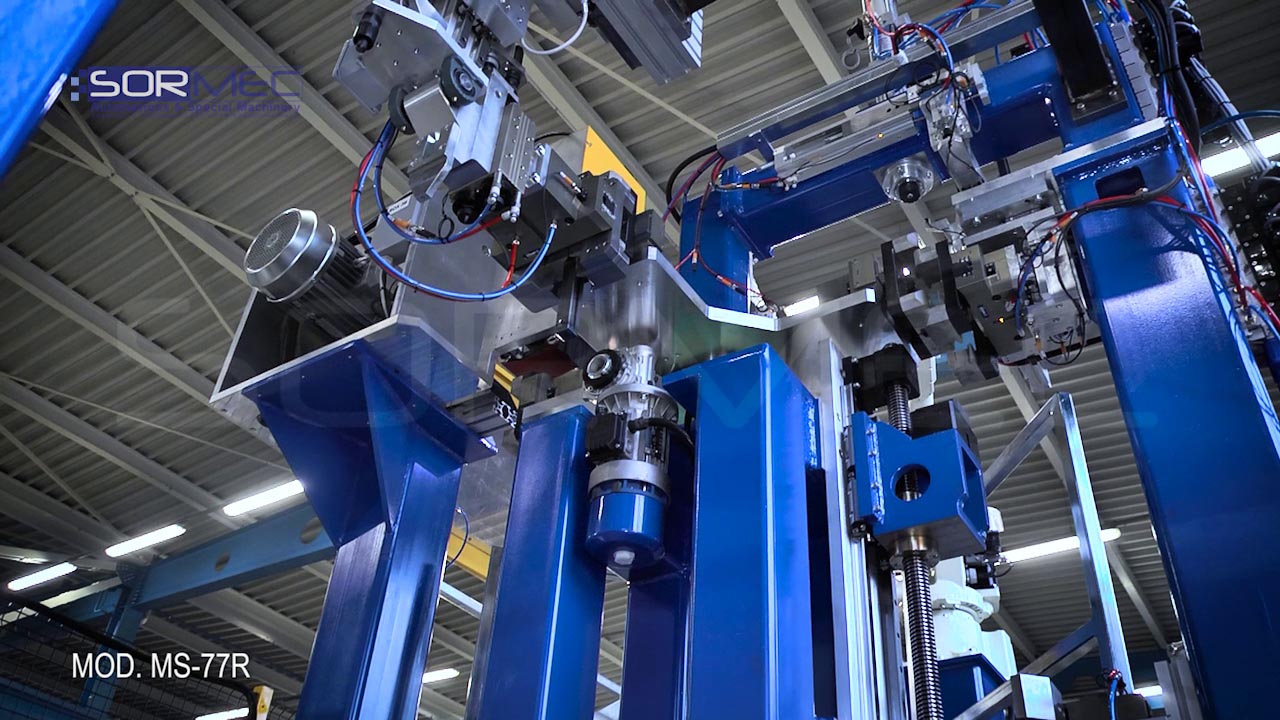

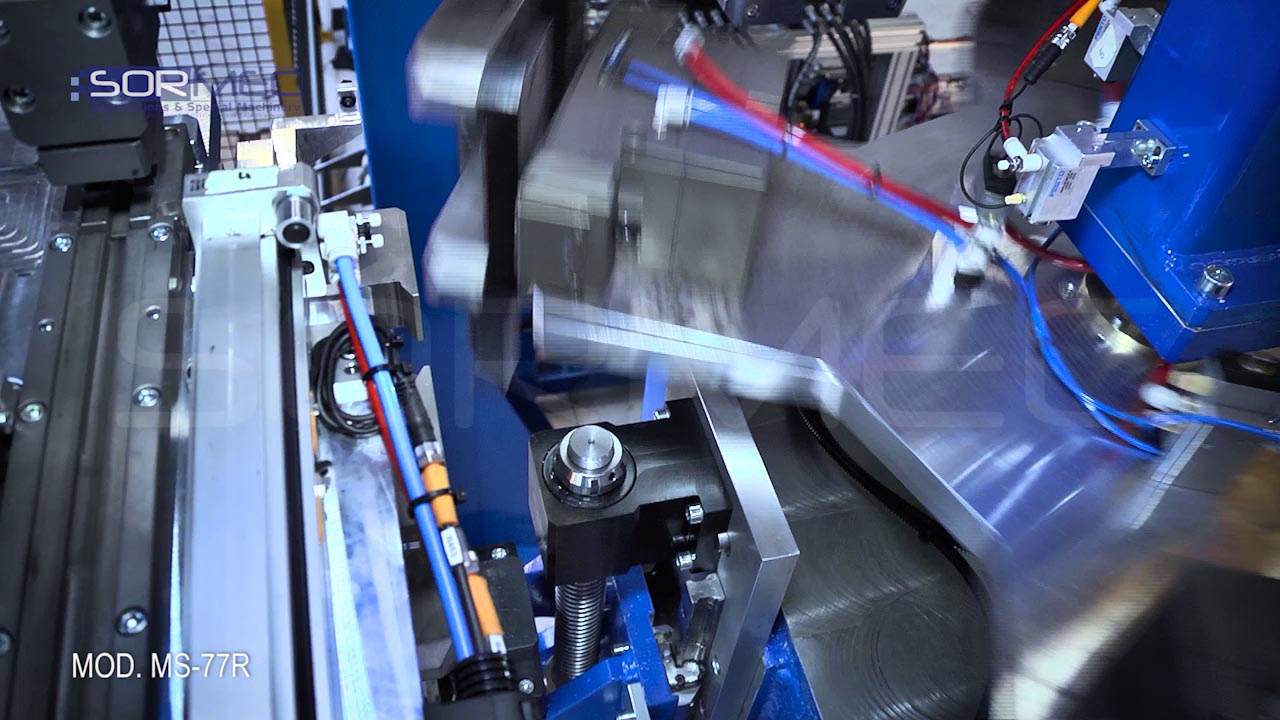

Rotary table on vertical structure (height approximately 2.4mt),

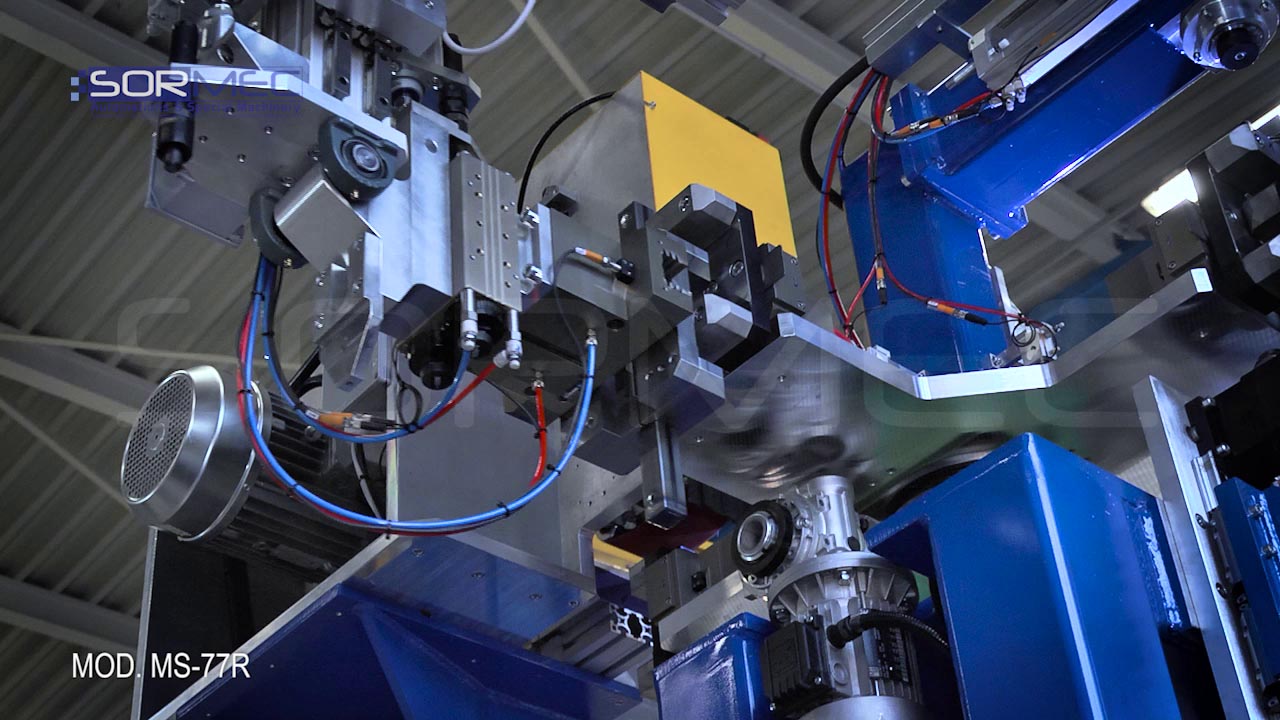

Feeding and planting station for the flange at the upper end

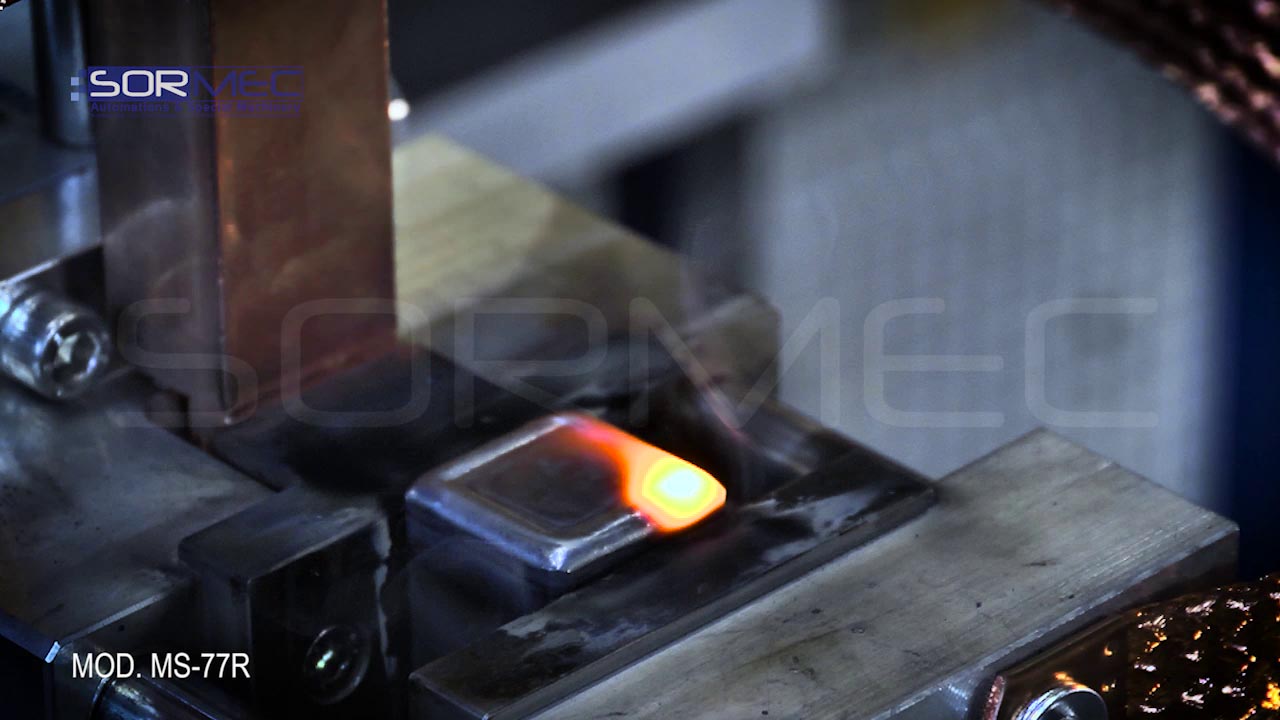

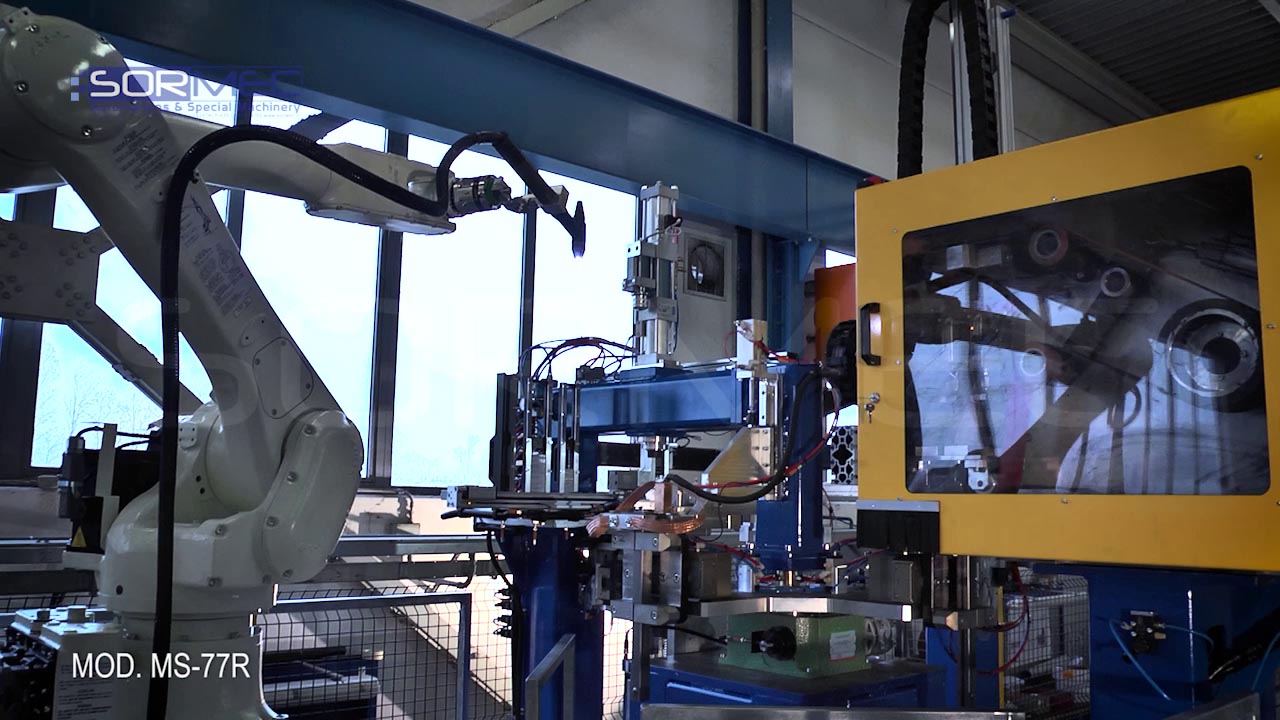

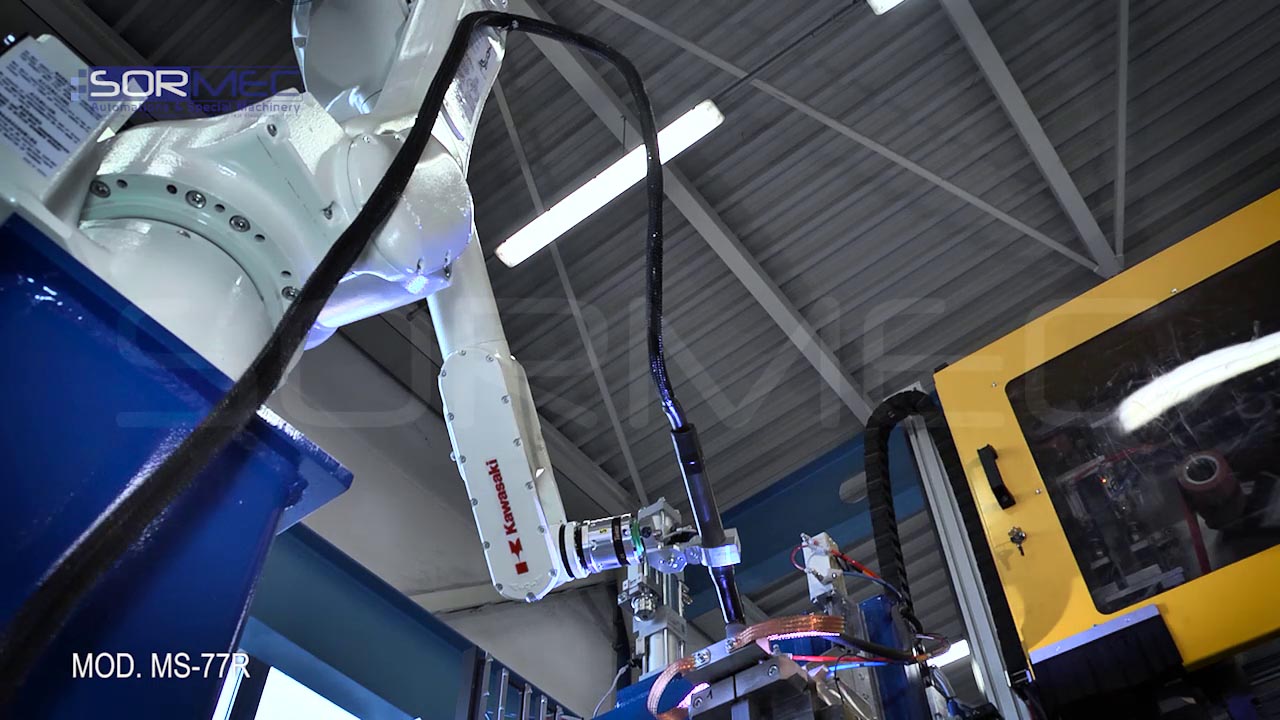

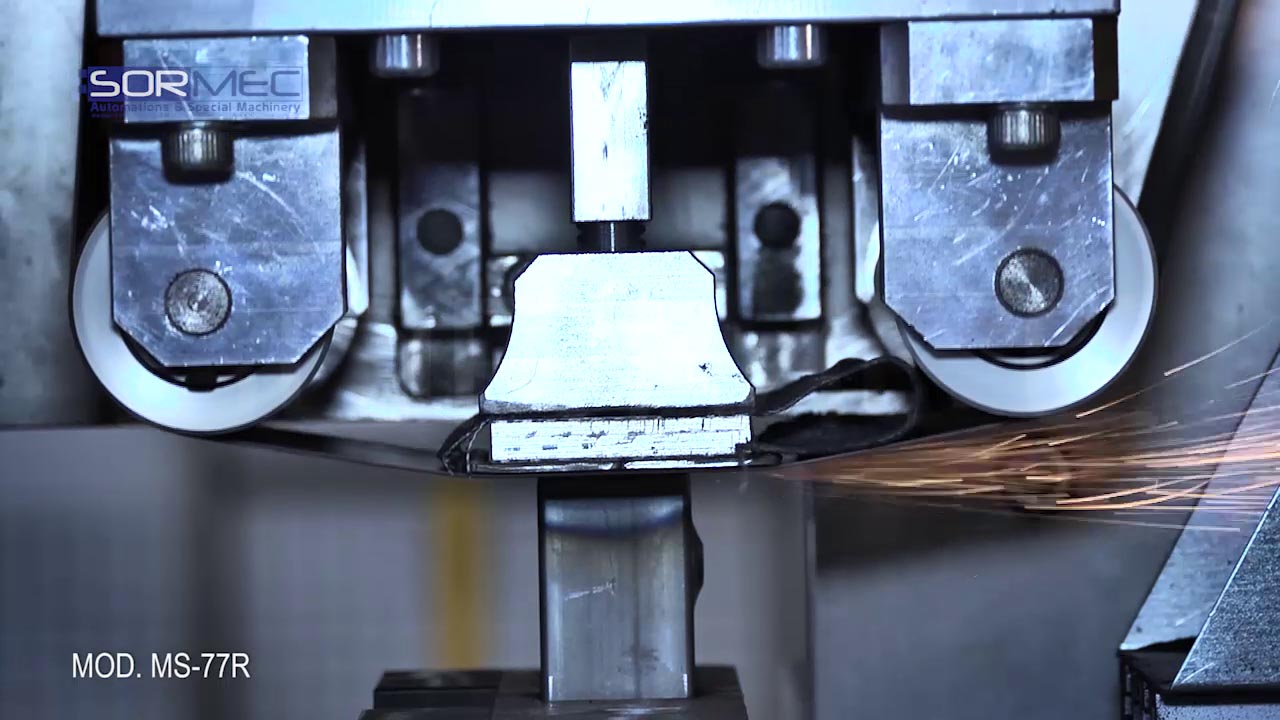

Station - welding of the flange on the manifold, with robot
Station for rotation of a manifold every 2, 180°
Pneumatic supply: 5.5 bar.
Electrical power supply: 400 V.
Welding cycle time each/ flange:13 ÷ 15 sec (estimate)

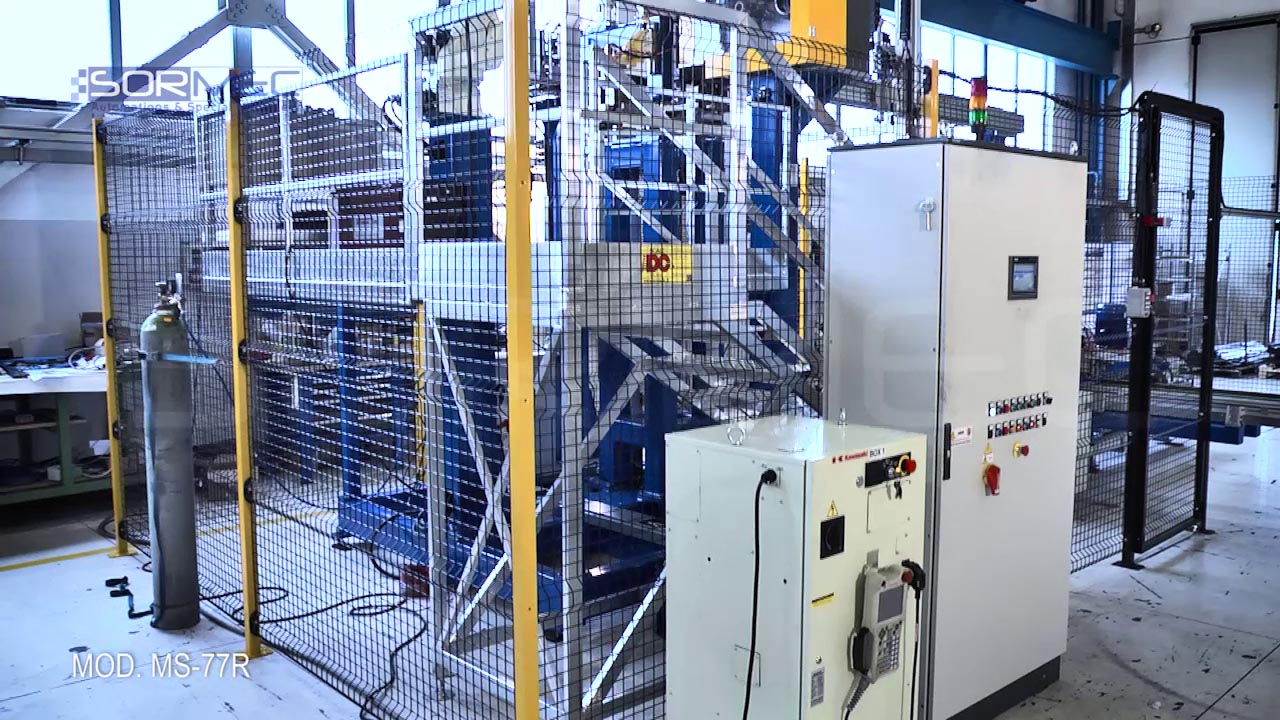

Space necessary. 3,000x 3,000 mm.
Cycle time: 30÷50 sec /2 manifold ends (according to the perimeter to be welded)
