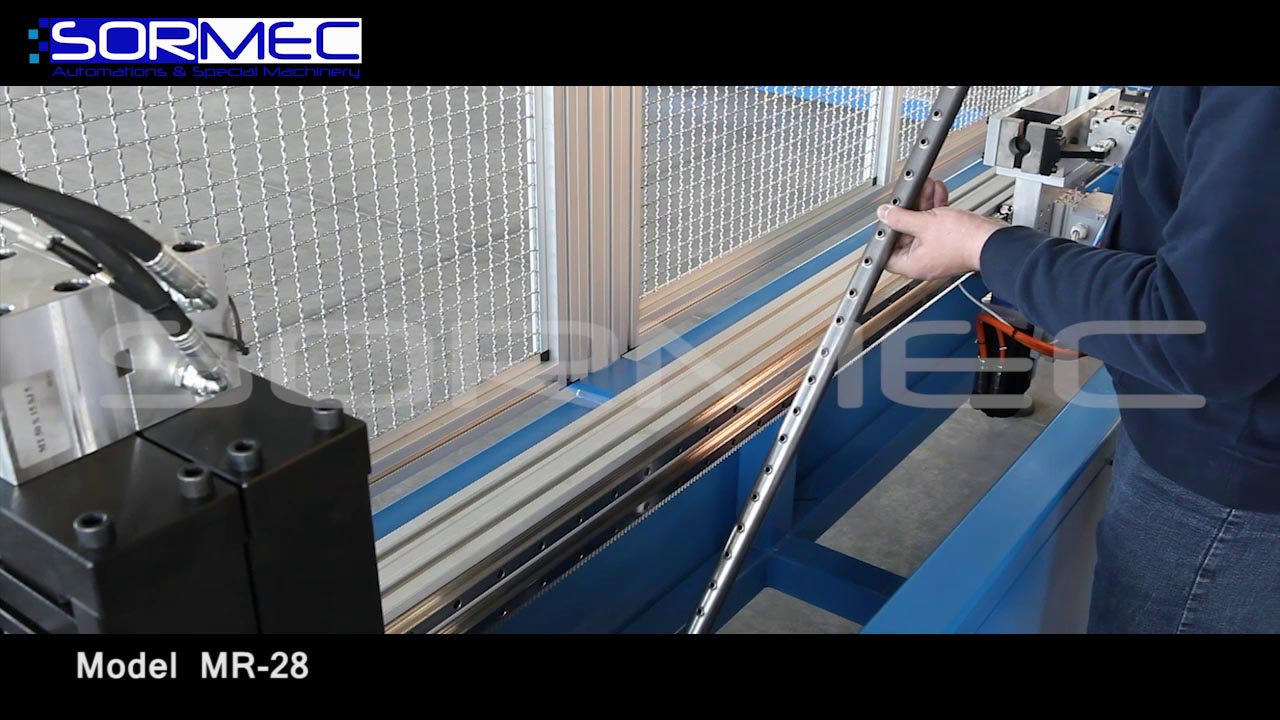

Drilling and embossing station of single manifold pipe, with manual loading

MR 28.0

TECHNICAL INFORMATIONS

Possibility of manual loading, automatic loading and unloading in line or with palletizer
Length of the collectors, between: 400÷ 2000
Possibility of different collector sections (oval, round, square, elliptical, etc.).
Diameter of the holes of the ashlars, to be defined, between: Φ 6÷14
Dimension between collector start and 1st bugna axis: programmable
Hole pitch:programmable
No. of bugs, between: 1 ÷ 99
Weight Kg 400
Overall dimensions mm. 6.500 x 1.200, H = 1.600 mm.
Supply voltage Volt 400 +/- 10%
Installed power Kw 9
Pressure Bar5
