Automatic transfer of resistance bending with central annealing and end machining

MHE 27.0

TECHNICAL INFORMATIONS

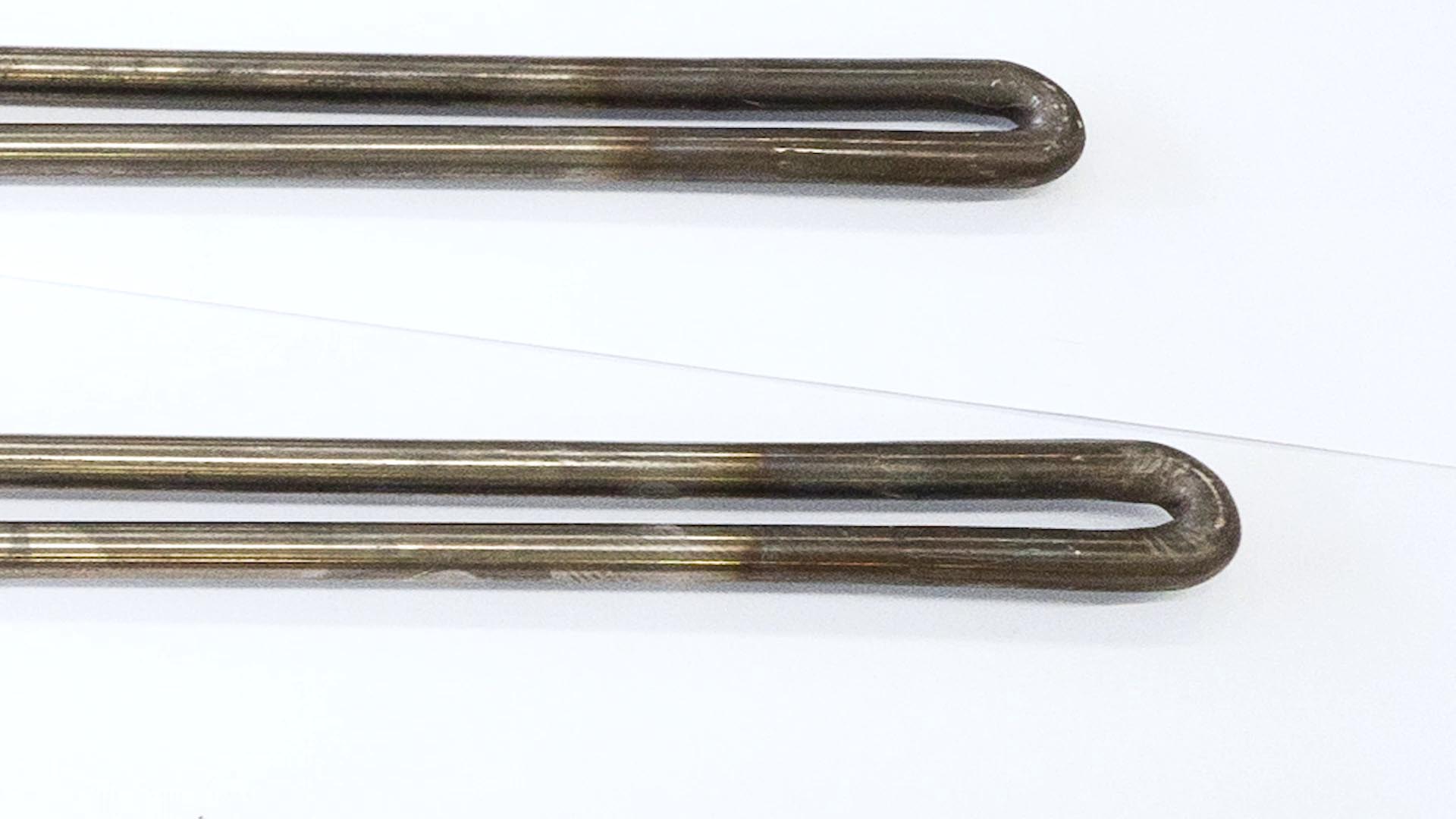

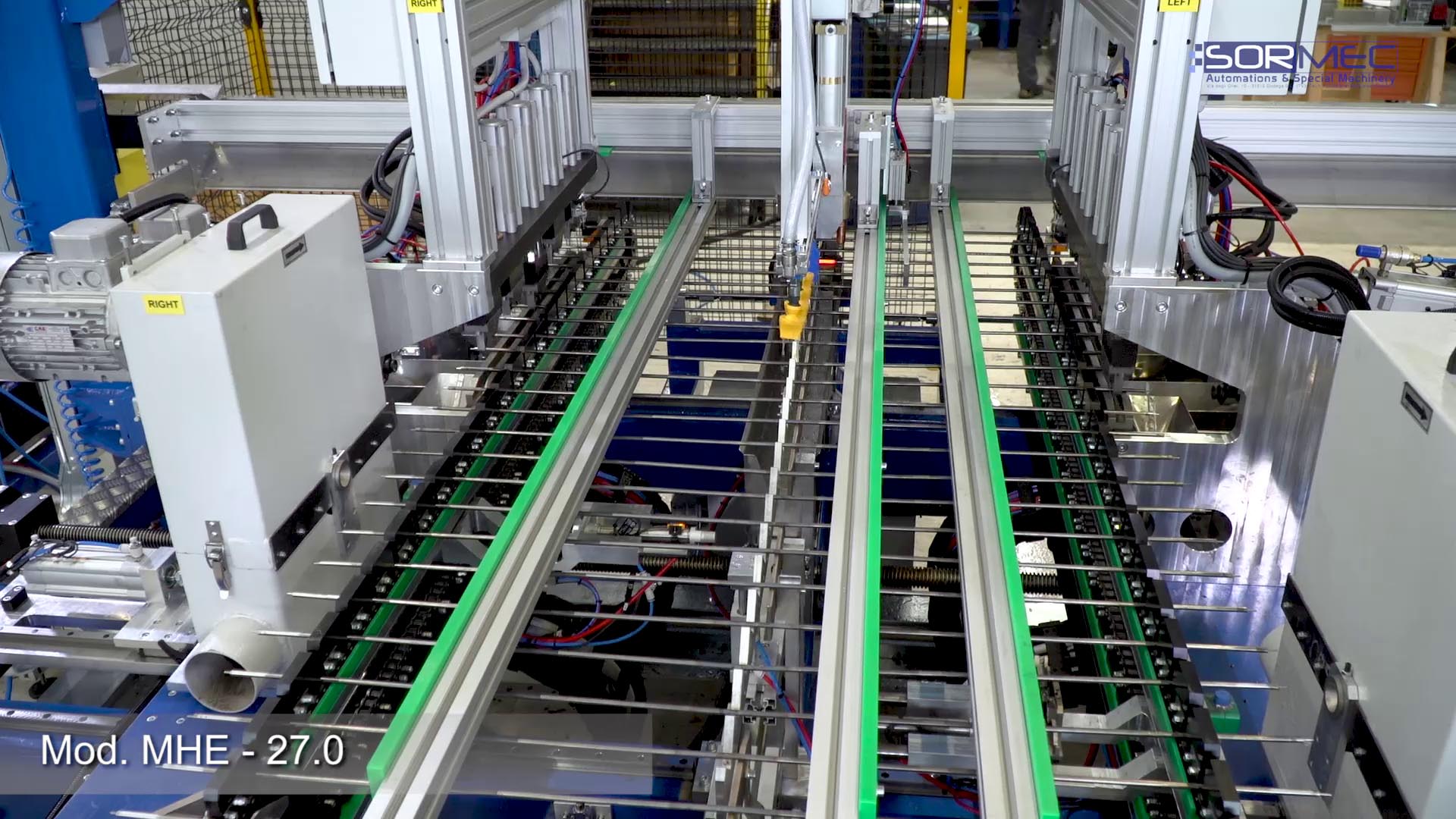

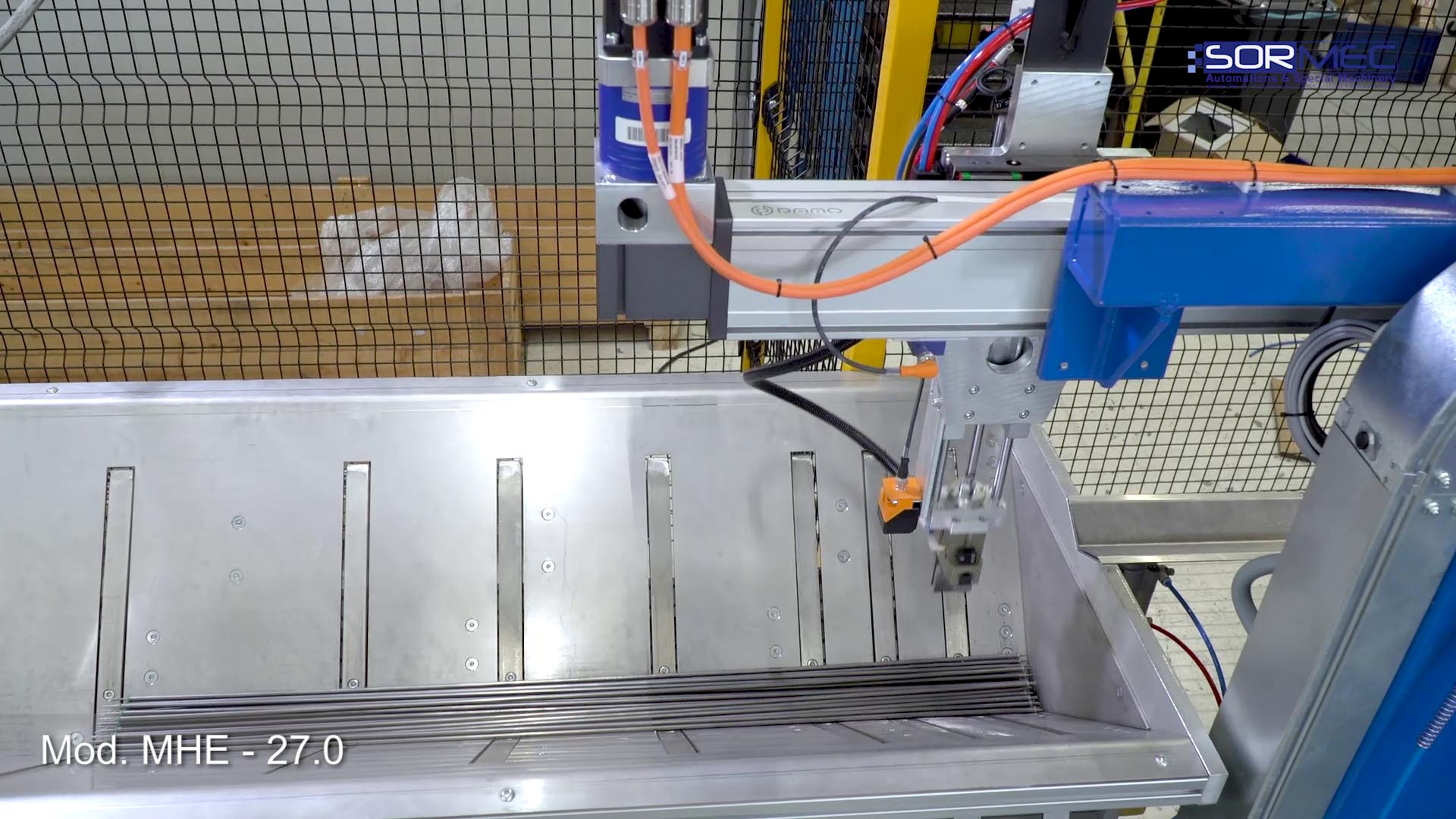

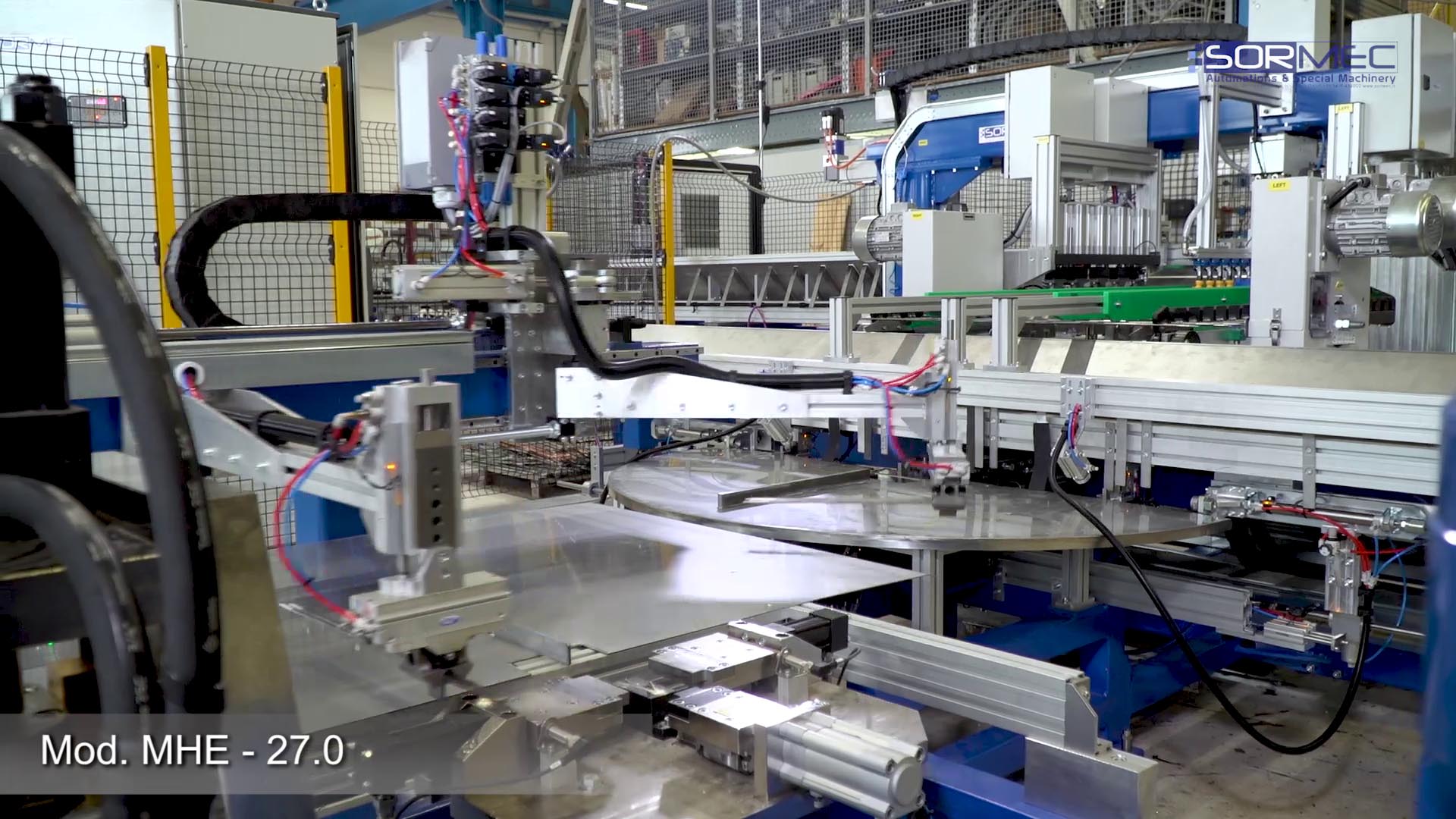

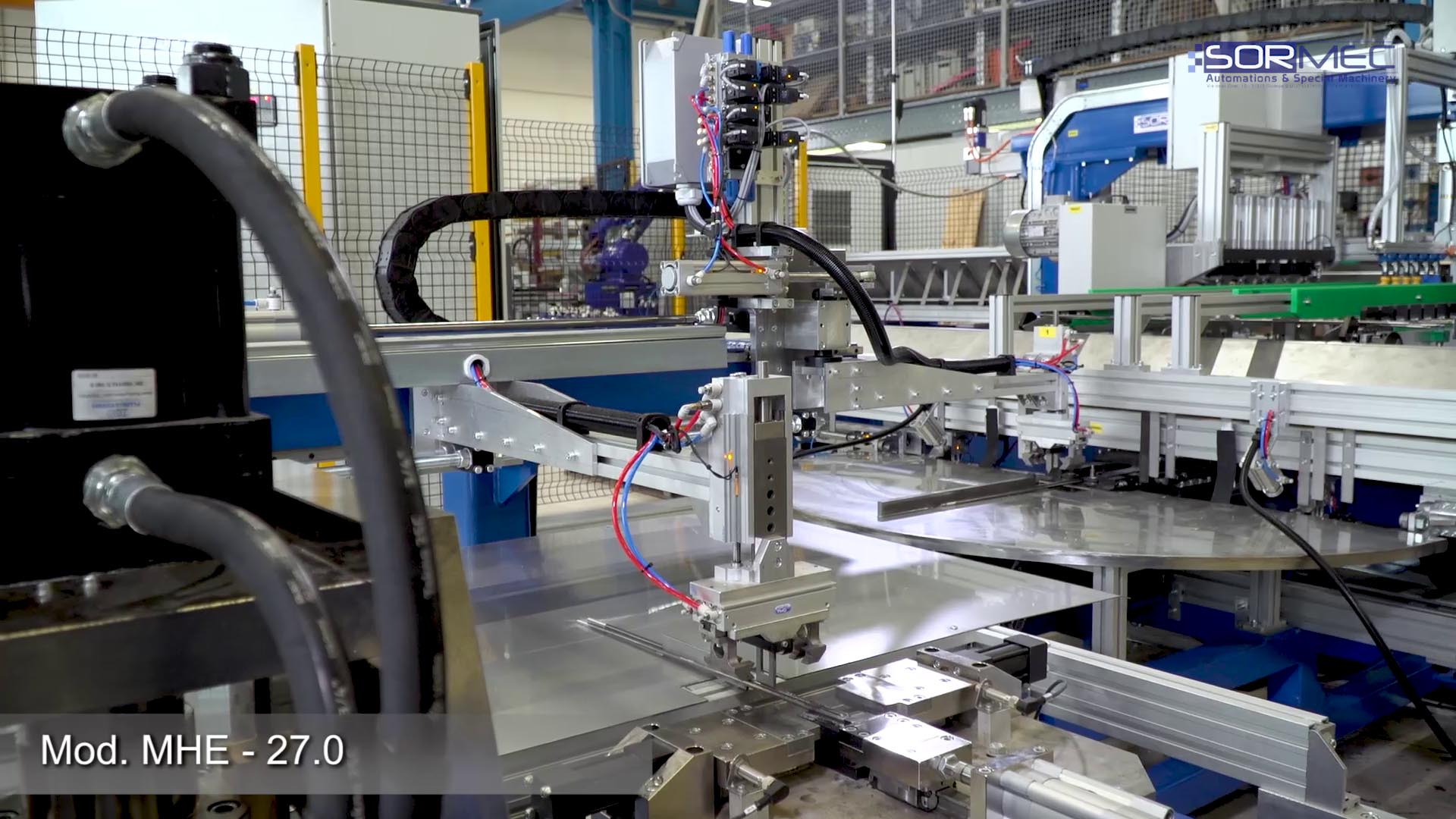

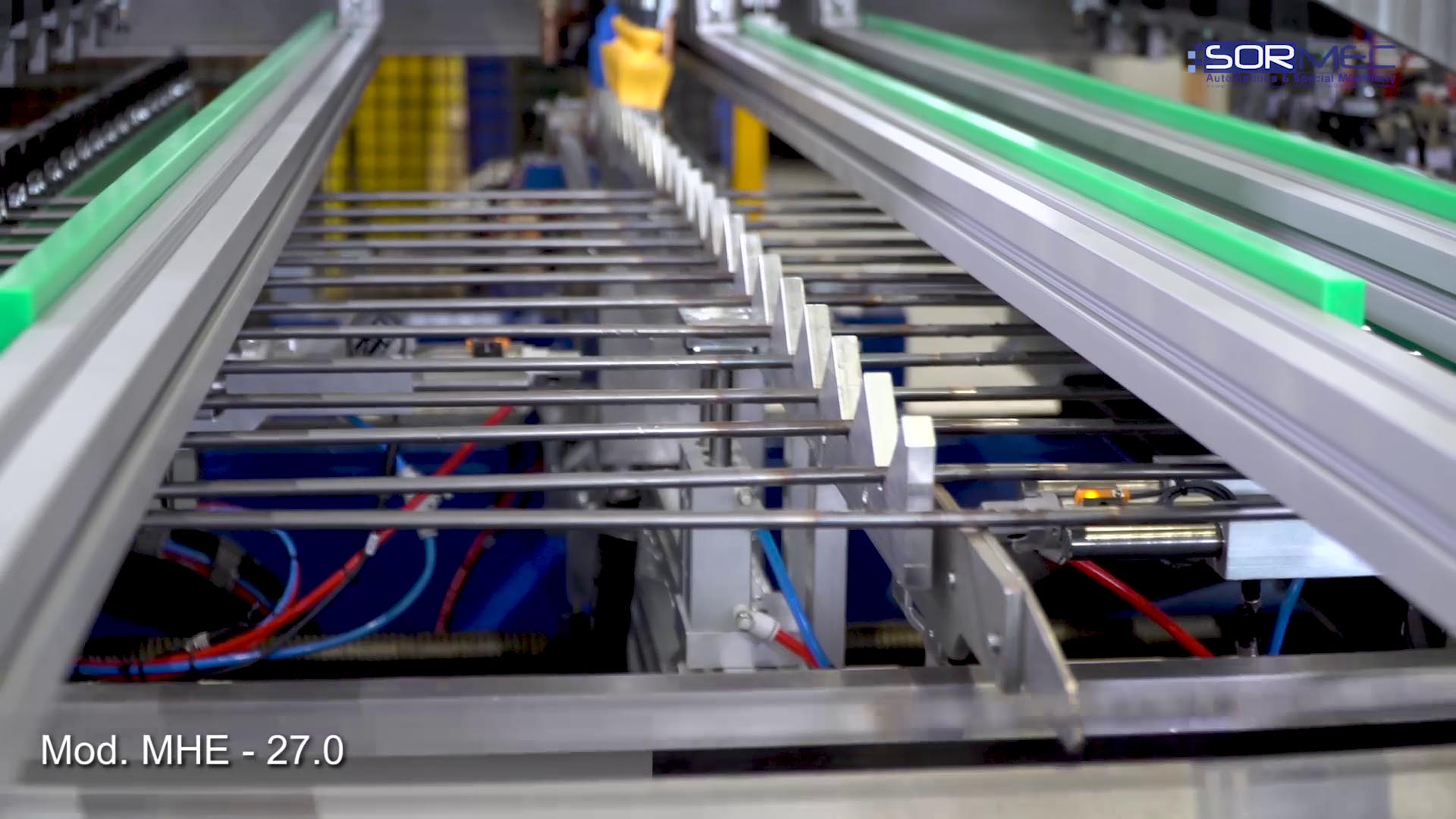

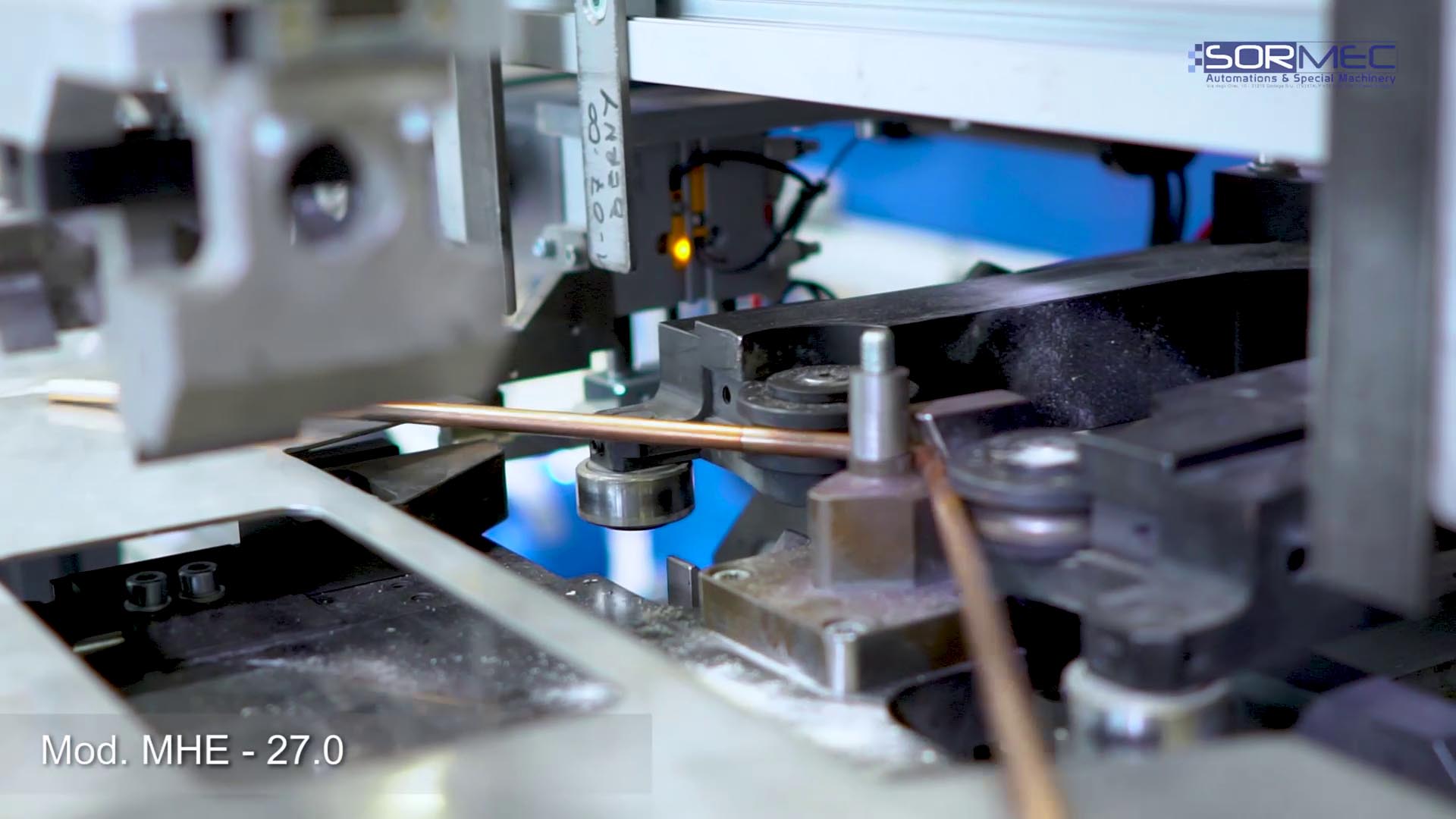

automatic transfer of "U" folding

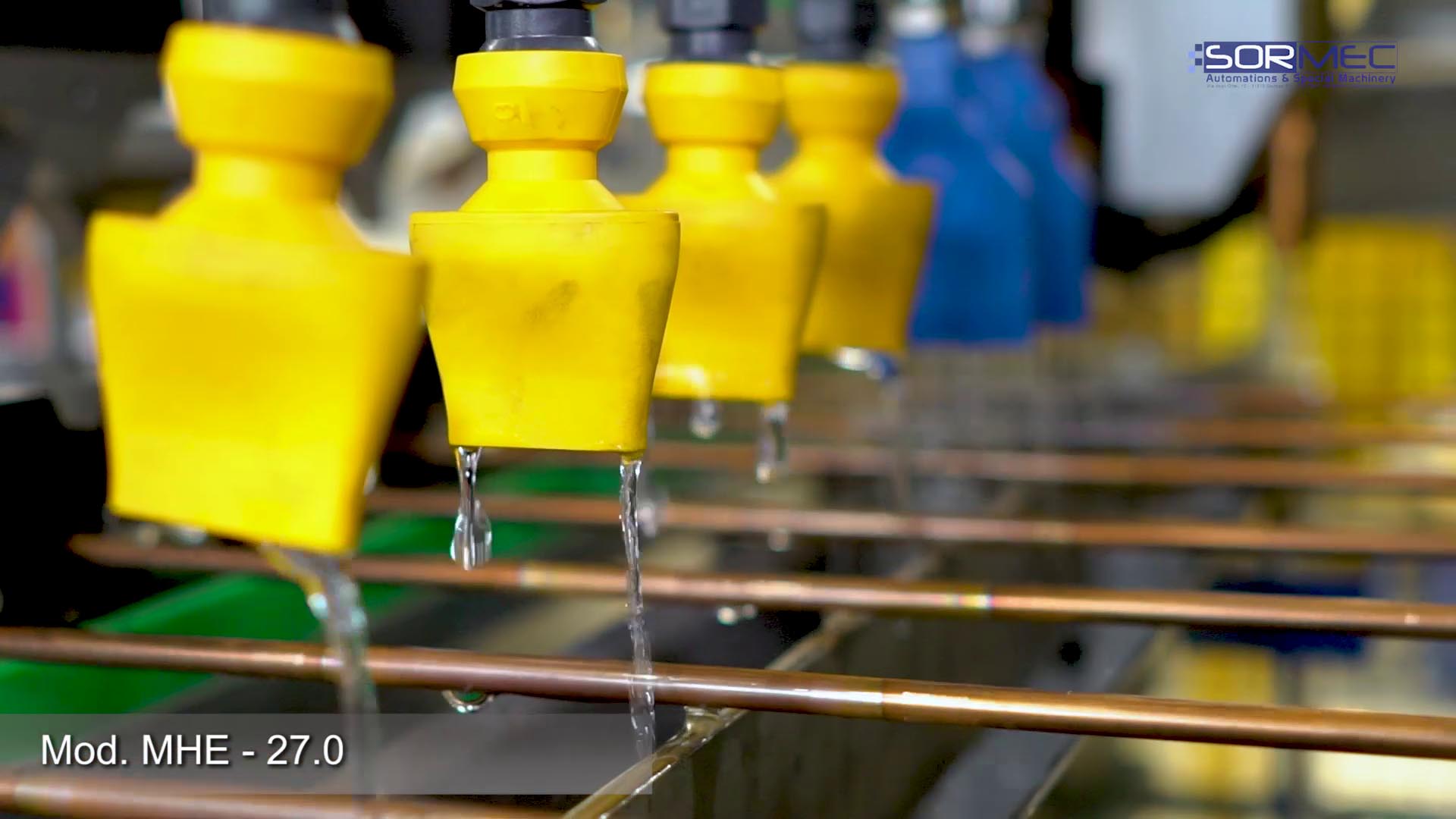

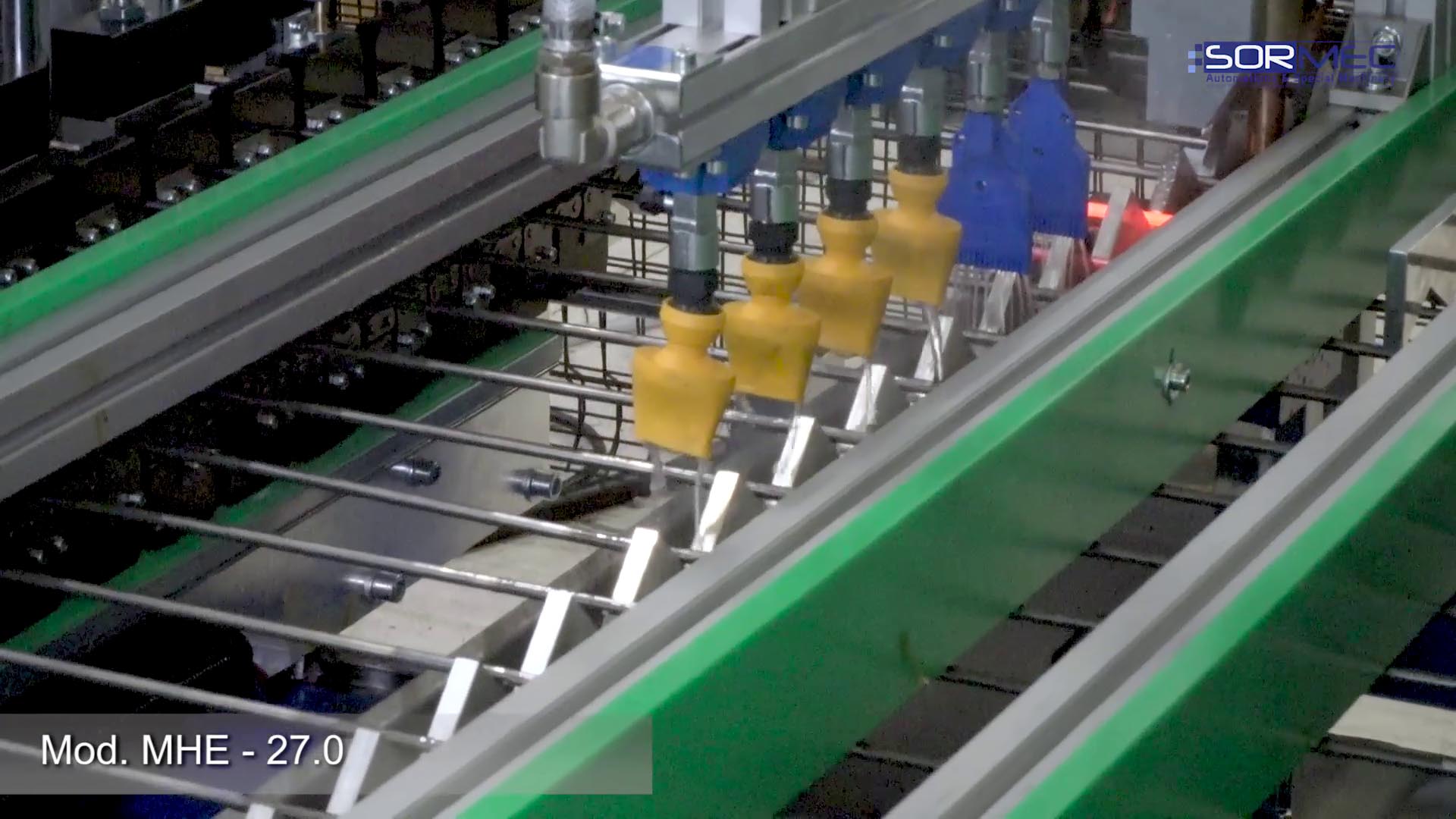

central annealing group

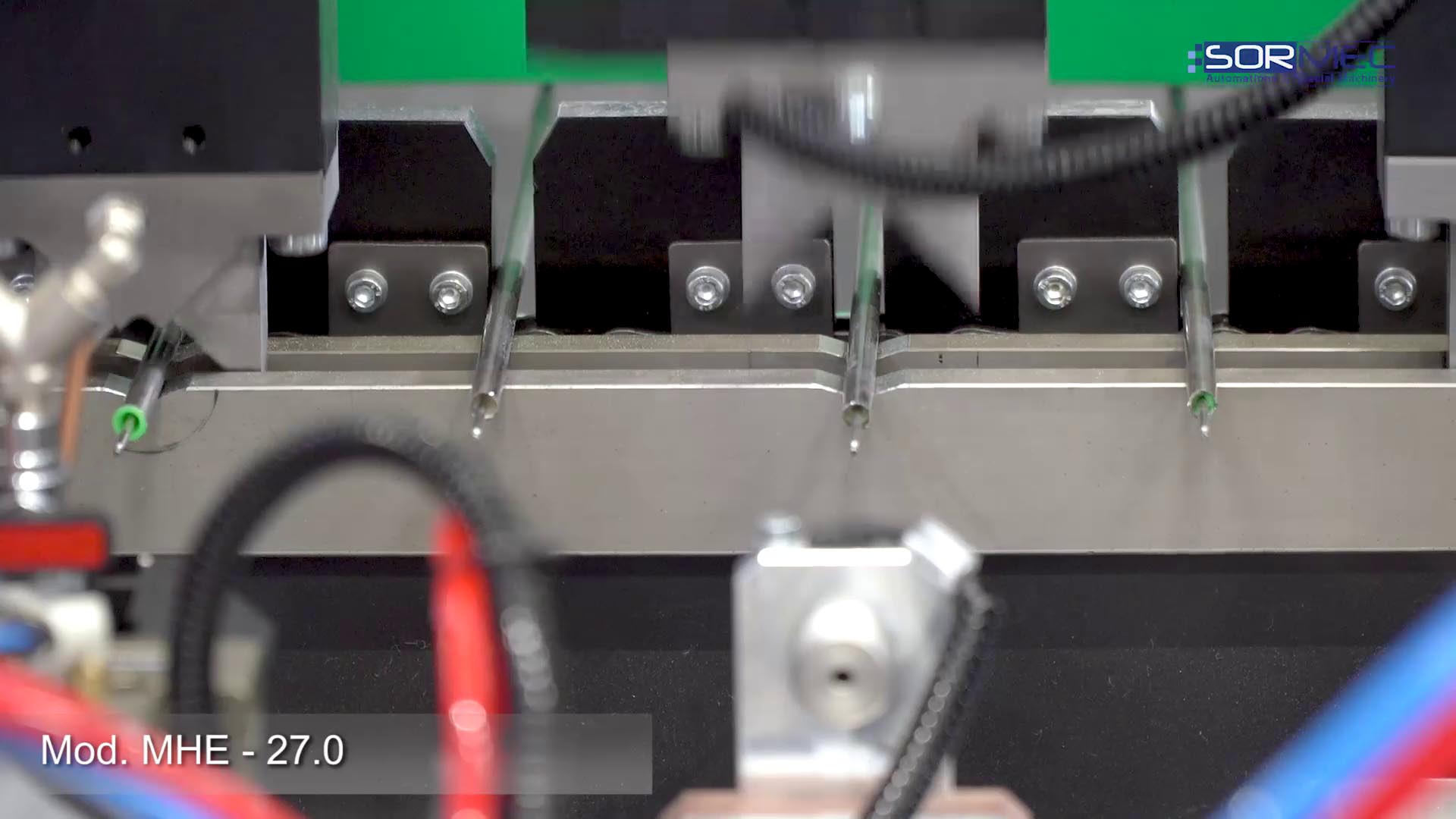

central element end machining units
Resistance diameter 6.4 - 8.4 mm.
Max length of straight resistances (Li. ).1,200 mm. + / - 1 %
Minimum length of resistances 300 mm.
Resistance materials. Iron - Stainless Steel

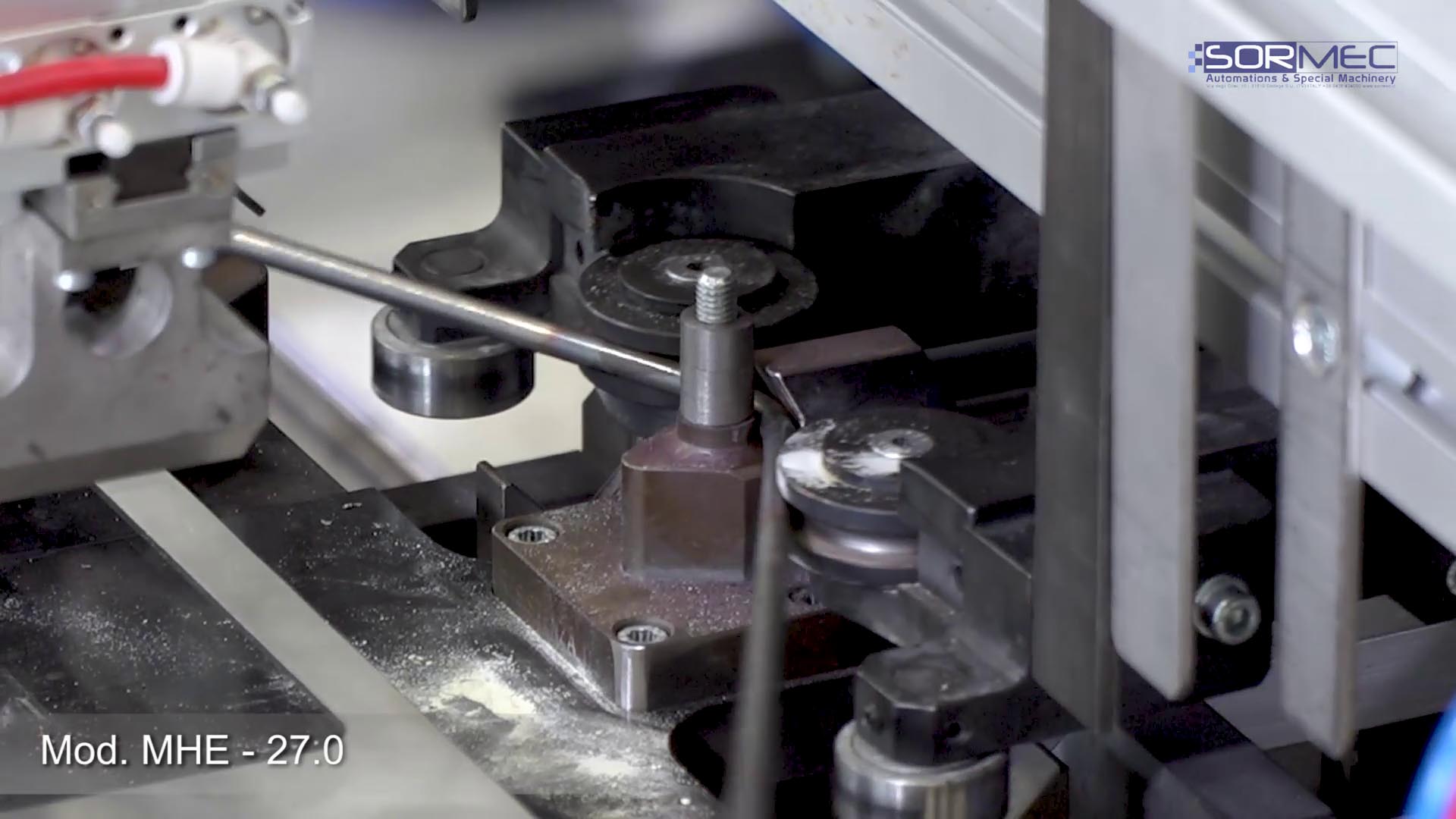

Diameter of the bending pin, between 18 and 60 mm.
of pin cut (L), between:  .9 and 17mm.
Length of annealing between ( Lr. ):40 and150 mm.
Cycle time:5 – 8 sec., depending on the thickness of the resistance on the length of the section to be annealed
 Installed power: 62 KWA.
Electrical power supply 3 x 400 V – 50 Hz.
 Pneumatic supply 5.5 bar.
Overall dimensions (approx.): 3,500 x 2,500, H = 1,500 mm.
