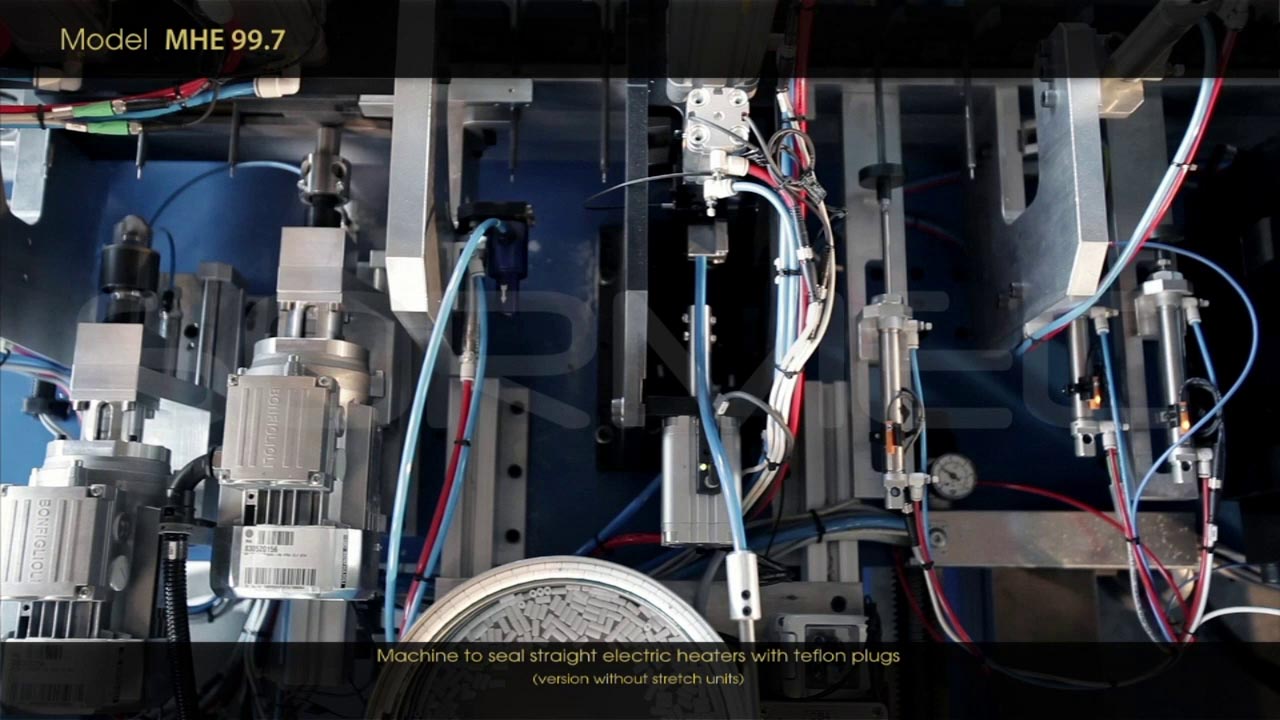

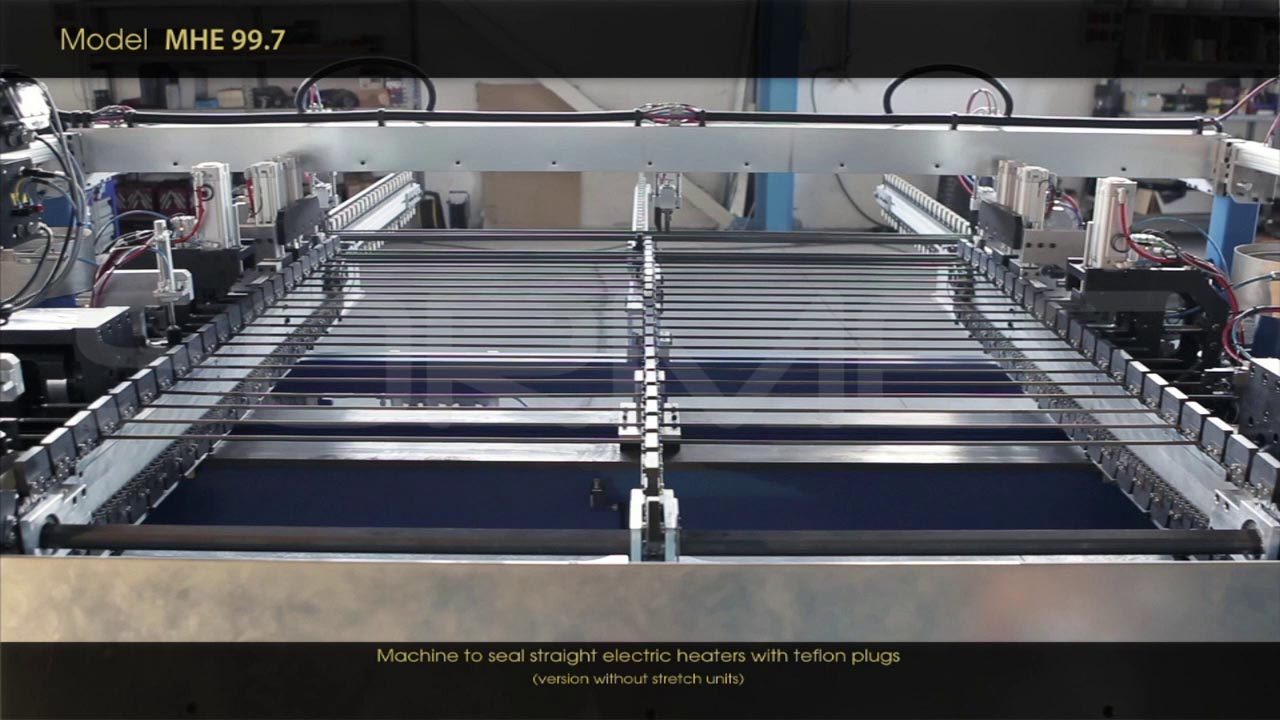

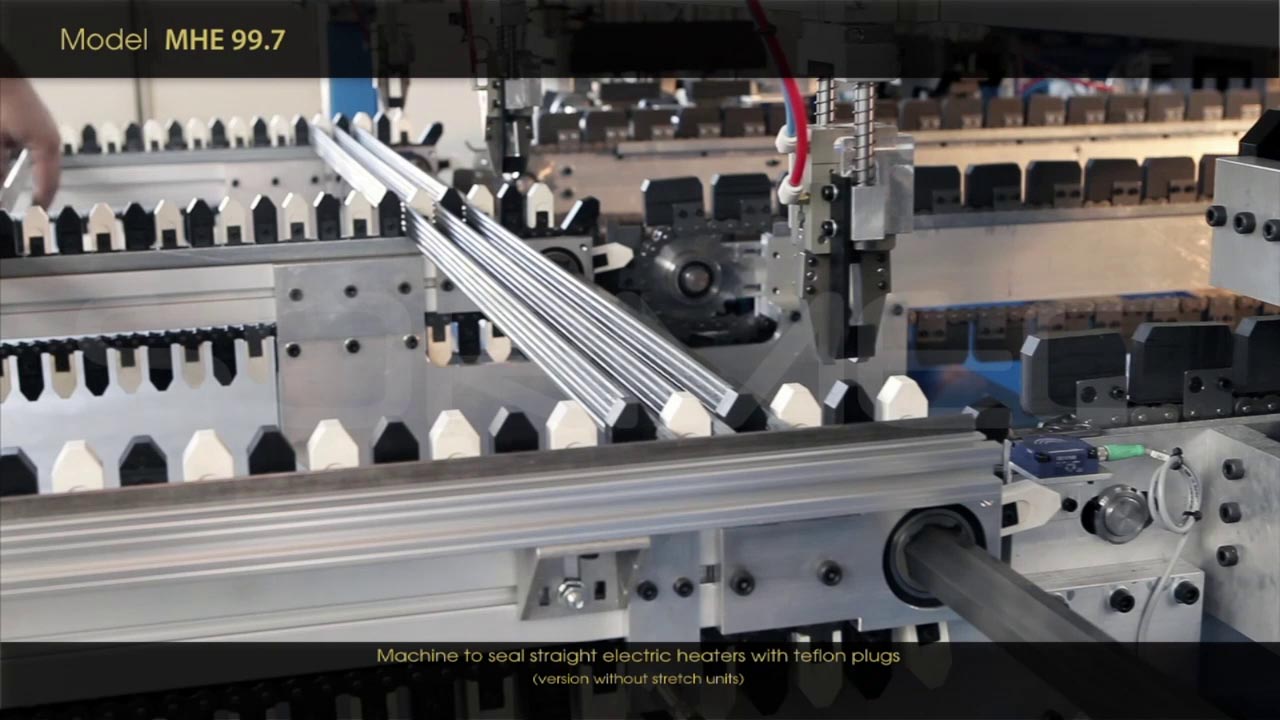

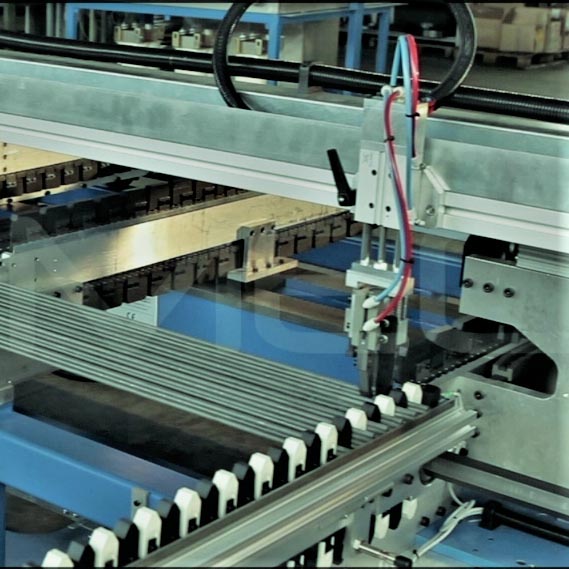

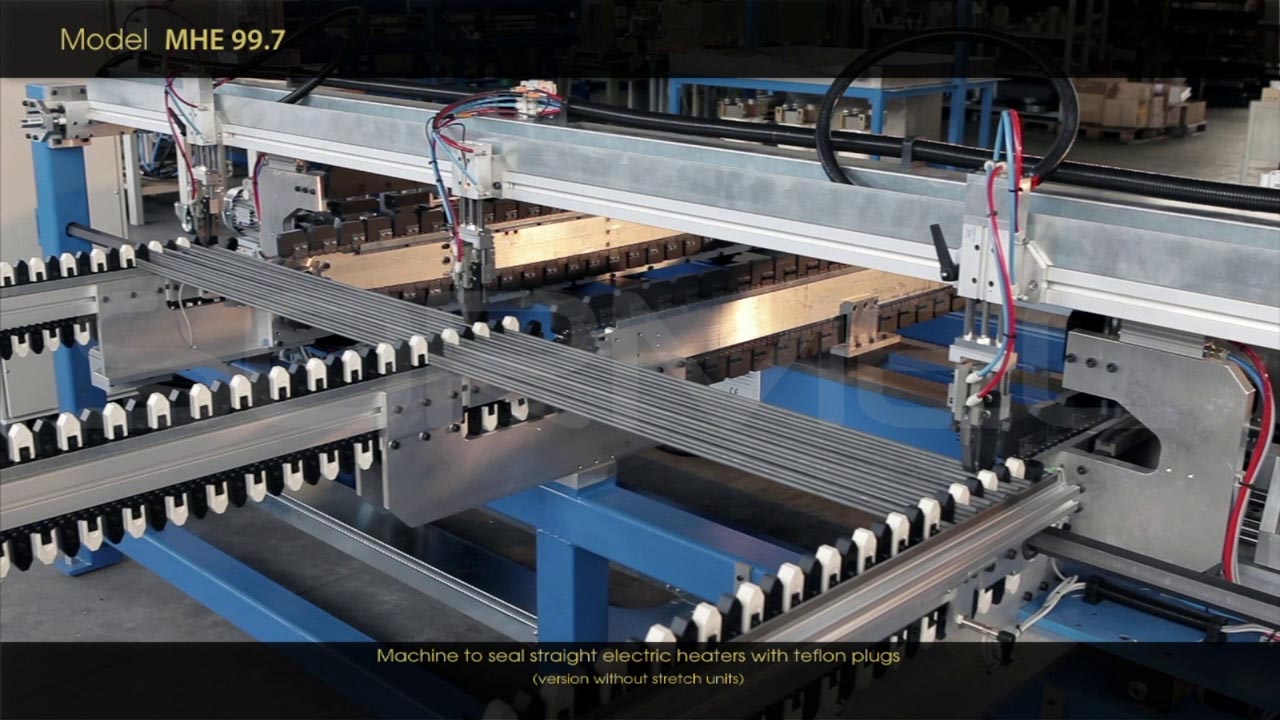

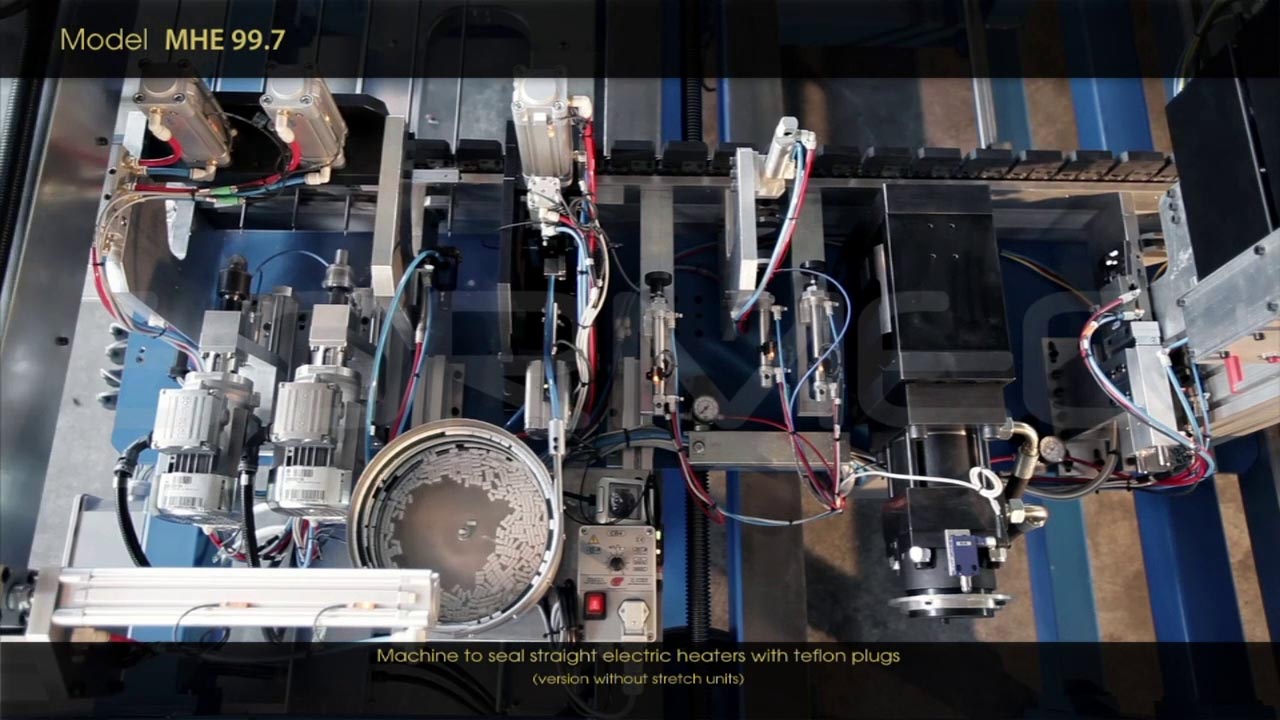

Automatic transfer stretch machine customised resistances and sealing with Teflon caps

MHE 99.7

TECHNICAL INFORMATIONS

Length of resistances between 600 and 2,500 mm. * / - 1
Diameter of resistances 6.4 mm.
types of caps managed no.1
Average cycle time 6 - 7 seconds.
Set-up time approximately. 5 minutes
Installed power 33 KW
Electrical power supply .3 x 200 – 400 V. – 50 Hz
Different solutions can be supplied

MHE 19.9 Line for straightening electric heaters, by automatic feeding
MHE 33.0 Manual work station to stretch to size, electric heaters
MHE 34.0 Semi automatic machine to stretch electric heaters to size
MHE 35.0Semi automatic machine to stretch electric heaters
MHE 66.1 Manual work station to cut to size terminal pin (for straight tubolar heaters)
MHE 92.0 Manual work station for the semi-automatic insertion of teflon plugs into the ends of straight electric heaters
MHE 93.0 Manual work station to block the teflon plugs to the ends of straight tubular heaters
MHE 94.0 Manual work station to insert and block the teflon plugs to the extremities of straight tubular heaters
MHE 95.0 Semiautomatic equipment to seal straight heaters with teflon plugs
MHE 99.6 Semiautomatic equipment to seal straight electric heaters with teflon plugs
MHE WS 003 Manual work station for marking the flanges of tubolar heater
MHE 30.8 Transfer to stretch to size and preparation of the ends of straight heating elements for defrosting
